LOCOMOTIVE COMPONENTS SECTION

3SMR Locomotive Chassis Components

Ref

Price each

Description


LC55
£ 2.00
Mainframe 1/8” brass Top-hat bearing bushes packet of 6

LC65
£ 2.00
Mainframe 1/8” brass Straw-hat bearing bushes packet of 6

LC72
£ 0.65
Phosphor Bronze contact strip per strip

LC73
£ 2.20
Copper-clad board 70mm x 130mm each

LC74
£1.25
Copper clad strip board for pickup attachment
LC75
£ 0.65
Nickel Silver contact strip per strip

LC76
£ 1.25
Etched brass Chassis spacers 12mm gauge, 8mm between frames, strip of 4

LC77
£ 1.25
Etched brass Chassis spacers 14.2mm gauge, 10.6mm between frames, strip of 4
LC78
£15.00
Chassis assembly jigs 12mm gauge set of 3
(out of stock)
LC79
£15.00
Chassis assembly jigs 14.2mm gauge set of 3
(out of stock)
LC93
£ 1.20
Cast Chassis spacers 12mm gauge whitemetal per pair

LC97
£ 1.00
Cast loco buffer beams with buffers for cast body kits whitemetal per pair
LC98
£ 1.00
Cast loco buffer beams without buffers for cast body kits whitemetal per pair
3SMR Locomotive Fittings & Components
L115
£ 2.00

Cast circular loco splasher 18mm diameter pair


L116
£ 2.00

Cast circular loco splasher 20mm diameter pair


L117
£ 2.00

Cast circular loco splasher 22mm diameter pair


L118
£ 3.00

Tender axleguards cast whitemetal set of 6


L119
£ 1.50

Brake standard short per pair

Brake
L120
£ 1.50

Brake standard long per pair


L121
£ 1.00

Tank Fillers per pair


L122
£ 1.00

GWR Pannier tank Safety Valve each


L123
£ 1.60

GWR Standard Safety Valve each


L124
£ 1.00

GWR High Safety Valve each


L125
£ 1.00

GWR Water Pick-up Dome pair


L126
£ 1.00

LMS Water Pick-up Dome pair


L127
£ 2.00

Smokebox door small 11mm diameter (2)

Smokebox DoorSmokebox Door

L128
£ 2.00

Smokebox door medium 12mm diameter (2)

L129
£ 2.00

Smokebox door large 13mm diameter (2)


L130
£ 2.00

Loco Backhead BR Standard each

L131
£ 2.80
BR Loco Steps
Loco Steps


L135
£ 2.50

Heavy front bogie casting 6’4” M/Navy, Britannia each

L136
£ 2.50

Heavy front bogie casting 7’0” Castle each

L137
£ 1.00

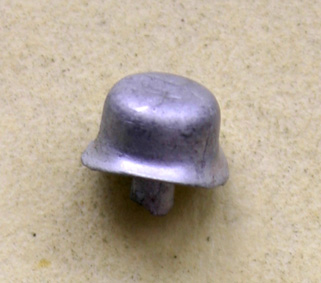

Steam Dome BR/LMS each
5mm x 7.5mm dia

L138
£ 1.00

Dome 7mm x 7.5mm dia

L139
£ 1.00

Dome 8mm x 7.5mm dia

L140
£1.00
Dome 9mm x 8mm dia
L141
£ 2.00

Dome 8mm x 7.5mm dia

L142
£ 1.50

Oval tank fillers and tank vents.

Oval Fillers Caps
L144
£ 2.00

Locomotive Buffers Tapered - short set of 4

L145
£ 2.00

Locomotive Buffers Parallel set of 4

L146
£ 2.00

BR Class 4 & 5 Cylinder covers cast pair

L147
£ 2.00

Locomotive Buffers Tapered - long set of 4

L148
£ 2.00

Locomotive Buffers Tapered with step set of 4

L149 £ 2.00 Locomotive Buffers Parallel with step set of 4
L150
£ 1.00

Locomotive Reversing Lever each

L151
£ 1.50

Westinghouse Pump each

L152
£ 1.00
Smokebox door semi-flat 12mm diameter each
L153
£ 1.00

Smokebox door LMS Type 15mm diameter each

LMS Smokebox Door
L155
£1.00

Smokebox door LMS Type 12mm diameter each

LMS Smokebox Door
L156
£ 2.00

Locomotive Buffers Oval set of 4

L157
£ 2.50

Heavy front or rear pony truck cast each

L158
£ 1.00

Double Chimney GWR Castle or King each

L159
£ 4.50

Loco Whistle Turned Brass pkt 2

L160
£ 6.50

Handrail Knobs 6” Short 1.2mm (4") pkt 24

L160M £ 4.95 Handrail Knobs 6” Medium 1.5mm (6") pkt 24
L161
£ 4.95

Handrail Knobs 9” Long 2mm (8") pkt 24

L161N £ 6.60 Handrail Knobs N gauge pkt 24
L162
£ 3.50

Britannia Smoke Deflectors Britannia -3 pairs different types per sheet

L163
£ 5.50

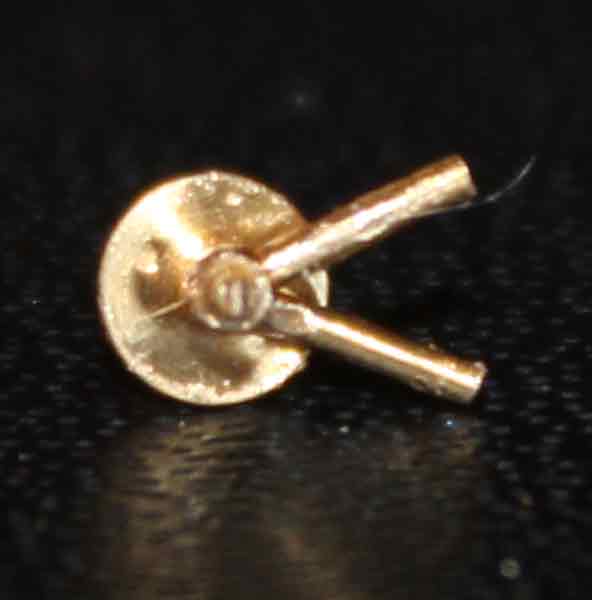

Smokebox door handles(darts) Smokebox door dart
L201
£ 3.30

Loco Lamps - unpainted - White-metal packet of 9

L210
£ 2.70
Set of Loco Tools: Shovel. Poker, Rake, Bucket
Loco Tools


NEW ITEMS
Produced from Geoff Helliwell Masters. These can be ordered for production quantities please enquire for prices
L300
£24.00
Set of Dukedog castings: backhead, chimney, dome, bogie axle guards, springs
L301
£2.50
Early Pannier Tank Backhead, Dukedog and others
L302
£2.50
Dukedog Chimney
L303
£2.50
Dukedog dome
L304 £7.00 Dukedog Bogie Axle Guard (2)
L304 set Dukedog Spring
L310
£2.50
Dean Goods Backhead suitable for 2251
L311
£2.00
2251 Chimney
L320
£2.50
City Backhead, also suits 28xx,2884 and maybe Grange and Halls
L361
£3.20

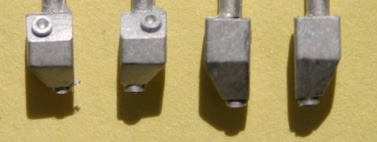

Later Sand Boxes

Sandboxes 57xx pannier maybe useful for many other ex GWR loco's

L362
£ 4.00
Tender Water Filters
L363
£ 3.20
GWR Tool Boxes set of 2
3SMR Coupling Rods etc.

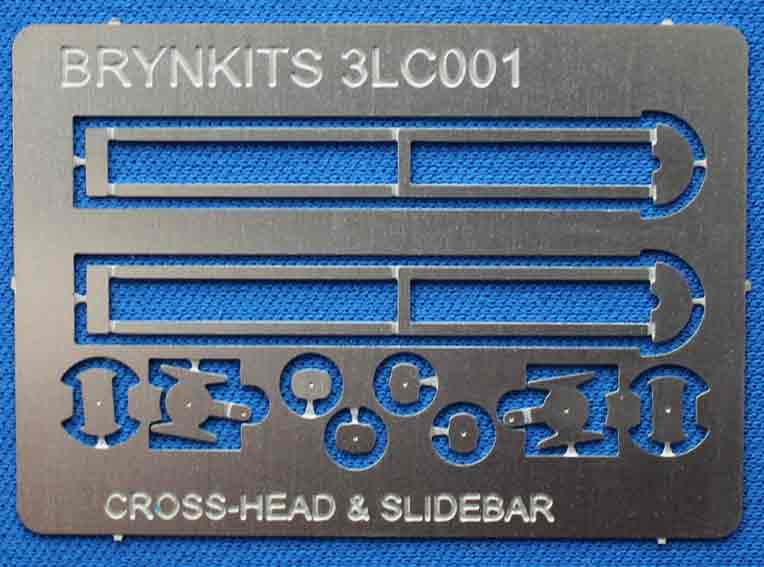

LC001 £8.40 Cross-head and Slidebar Crosshead and slidebar
L500
£ 6.50
Cross-Heads Cast Nickle Silver
Discontinued
Crossheads
L501
£2.70
Tri-ang type Tapered Jinty, Shunter, Prairie, Castle per pair
L502
£ 3.00
Outside Cranks Etched set of 6
L503
£ 2.70
Tri-ang type Plain Jinty, Shunter, Prairie, Castle per pair
L504
£ 2.70
Tri-ang type Fluted Jinty, Shunter, Prairie, Castle per pair
L505
£2.70
Chris Hardy type Plain or Fluted per pair
L506
£ 4.00
SR Q1 Class Austerity Wheel discs for Hardy wheels set of 6
L507
£ 2.70
Outside Cranks Etched set of 4
L508
£ 3.00
Chris Hardy type Tapered per pair
L509
£ 2.70
Tri-ang type Merchant Navy, Britannia per pair
LS09
£22.75
Smoke Unit 5mm dia needs shortening to fit Triang Locos
LS99
£23.00
Smoke Unit 5mm dia needs shortening to fit Triang Locos
LS105
£8.50
Smoke Unit Oil 50ml
3SMR Loco Chassis Kits - frames & rods
LC601 £ 6.95 7’3” x 8’3” wheelbase GWR 57xx, 94xx, 97xx with 12mm & 14.2mm spacers

LC603 £ 7.50 7’3” x 8’3” wheelbase GWR 2251, Dean Goods with 12mm & 14.2mm spacers

LC604 £ 6.50 8’0” x 8’6” wheelbase SR Q with 12mm & 14.2mm spacers

LC605 £ 9.50 8’0” x 8’6” wheelbase SR Q1 (with Bulleid wheel discs)inc 12 & 14.2mm spacers

LC606 £ 7.50 8’0” x 8’6” wheelbase LMS/MR 4F inc 12 & 14.2mm spacers

LC607 £ 6.50 8’1” x 9’0” wheelbase GCR/LNER J11 with 12mm & 14.2mm spacers

LC608 £ 6.95 7’3” x 9’0” wheelbase GNR/LNER J50 inc 12 & 4.2mm spacers

LC609 £ 7.50 6’10” x 7’5” wheelbase SR - G6 NER/LNER - J72 inc 12 & 14.2mm spacers

LC610 £ 6.50 8’0” x 8’0” wheelbase LBSCR/SR E2 inc 12 & 14.2mm spacers

LC611 £ 6.50 7’4” wheelbase GWR 14xx, 48xx, 58xx with 12mm & 14.2mm spacers

LC612 £ 7.50 9’6” wheelbase LMS/MR 2P with 12mm & 14.2mm spacers

LC613 £ 6.50 7’3” x 8’0” wheelbase GWR 56xx with 12mm & 14.2mm spacers

LC614 £ 7.50 7’0” x 7’9” wheelbase GWR 43xx, 93xx inc 12 & 14.2mm spacers

LC615 £10.65 7’0” x 7’9” wheelbase GWR 31xx, 51xx, 61xx, 81xx inc 12 & 14.2mm spacers

LC616 £ 7.50 10’0” wheelbase LSWR/SR T9 (incl.tender coal rails )inc 12 & 14.2mm spacers

LC617 £ 6.95 5’9” x 5’9” wheelbase BR O8, O9 Diesel Shunter with 12mm & 14.2mm spacers

LC618 £ 7.50 8’6” wheelbase GWR Bulldog, Dukedog, City with 12mm & 14.2mm spacers

LC619 £ 7.50 5’8.5” x 5’5.5” x 5’11” w.b. GCR/GWR R.O.D.inc 12 & 14.2mm spacers

LC620 £12.00 7’4” x 8’0” wheelbase LMS Stanier Black 5 Nickle Silver etch kit inc chassis spacers for both 12 and 14.2 gauge, bearings, cylinders and brake details

LC621 £ 6.50 6’0” x 6’0” wheelbase LBSC/SR A1X Terrier with 12mm & 14.2mm spacers
3SMR Loco Chassis Kits - as supplied in complete kits (original versions)
LC701 £ 8.00

GWR 4-6-0 49xx Hall, 6959 Mod. Hall, Class *


LC702 £8.00

GWR 4-6-0 29xx Saint Class *


LC703 £8.00

GWR 4-6-0 40xx Star Class *


LC704 £8.00

GWR 4-6-0 68xx Grange Class *


LC705 £8.00

GWR 4-6-0 78xx Manor Class *


LC706 £8.00

GWR 4-6-0 10xx County Class *


LC707 £8.00

GWR 4-6-0 4073 Castle Class *


LC708 £8.00

GWR 2-8-0 28xx, 2884 Class *


LC709 £8.00

LMS 2-6-0 5P4F Crab Class


LC710 £8.00

LMS 0-8-0 7F Class


LC711 £8.00

SR 4-6-0 N15 King Arthur Class


LC712 £8.00 LSWR 0-6-0 700 Class

LC713 £8.00 LSWR 0-6-0 0395 Class

LC714 £8.00 LSWR 0-4-2 A12 Class

LC715 £8.00 LSWR 4-4-0 K10 Class

LC716 £8.00 SECR 4-4-0 D Class

LC717 £8.00 SECR 0-6-0 C Class

LC718 £8.00 SECR 0-4-4T H Class

LC719 £8.00 LSWR 0-4-4T O2 Class

LC720 £8.00 LSWR 0-6-0T G6 Class

LC721 £9.75 LSWR 0-4-4T T1 Class

LC722 £8.00 LSWR 0-4-4T M7 Class

LC723 £8.00 LNWR 4-6-0 Claughton

LC724 £8.00 GWR 2-6-0 Aberdare Class*

LC725 £8.00 LNWR 0-8-4T Beames 7F Heavy Freight Tank Loco
BRYNKITS Highly Detailed Foldup Chassis Kits

LC1201 £13.95 GWR 2251 chassis 7'3" x 8'3" 12mm gauge 0-6-0 class
LC1202 Out of Stock GWR 0-4-2T 14xx/48xx/58xx class 12mm guage
LC1203 £13.95 GWR 0-6-0PT 94xx class 12mm gauge
LC1204 £13.95 GWR 0-6-0PT 54xx/64xx/74xx class 7'4" x 7'4" 12mm gauge
LC1205 £13.95 GWR 0-6-0PT 57xx class 12mm
LC1228 £14.40 GWR Metro Tank Chassis 8'3" wb 12mm gauge
LC1401 £13.95 GWR 0-6-0 2251 class 14.2mm gauge
LC1402 £13.95 GWR 0-4-2T 14xx/48xx/58xx class 14.2mm gauge
LC1403 £13.95 GWR 0-6-0PT 94xx class 14.2mm gauge chassis
LC1404 £13.95 GWR 0-6-0PT 94xx class 14.2mm gauge chassis
LC1405 £13.95 GWR 0-6-0PT 57xx class 14.2 gauge Chassis
LC1428 £14.40 GWR Metro Tank Chassis 8'3" wb 14mm gauge



* Indicates that these are only available whilst existing stocks last
